Custom UIStackView spacing

⋅ 3 min read ⋅ UIStackView UIKit

Table of Contents

UIStackView is my go-to tool to layout things in views. You don't have to deal with top, bottom, leading, trailing constraints. You just put views into it and define spacing, alignment, and distribution options. Things get a little bit complicated if your layout doesn't have uniform spacing. In the following example, our content has a different vertical spacing of 0 and 10 points.

Our vertical stack view has a spacing of 0 and 10, respectively
Our vertical stack view has a spacing of 0 and 10, respectively

Solution (Before iOS 11)

The solution is to nesting multiple UIStackView together and assigns different spacing for each stack.

The following is a snippet for this solution. We declare an inner stack view with zero space for movie label and quote label, then another stack view for custom spacing between quote and author name.

let outerStack = UIStackView()
outerStack.axis = .vertical
outerStack.spacing = 10

let innerStack = UIStackView()
innerStack.axis = .vertical

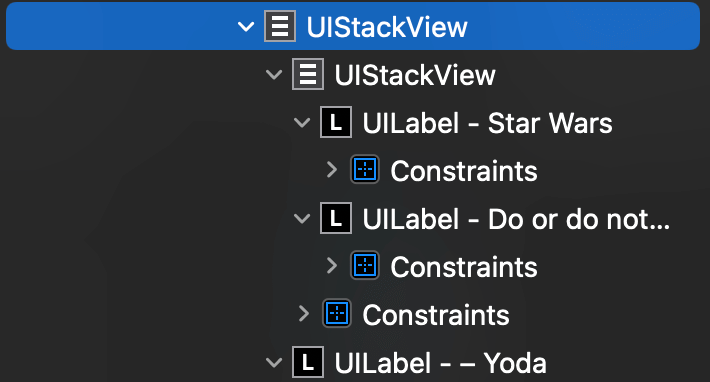

And this is a view hierarchy representing the above stacks.

Nested UIStackView
Nested UIStackView

Better way in iOS 11 and forward

In iOS 11, you can easily set a custom spacing between each arranged subviews using a new instance method, setCustomSpacing(_:after:).

You can achieve the same layout with just one UIStackView.

let vStackView = UIStackView()
vStackView.axis = .vertical

vStackView.setCustomSpacing(10, after: quoteLabel) // <1>

<1> Set custom spacing of 10 points after quote label.


There are some limitations and differences between these two solutions that you should aware of.

  • You have set custom spacing after adding an arranged subview to a stack view.

Won't work:

vStackView.setCustomSpacing(10, after: quoteLabel)

Will work:

vStackView.setCustomSpacing(10, after: quoteLabel)
  • There is no method to define spacing before arranged subview.

  • You can only do this in code, not interface builder.

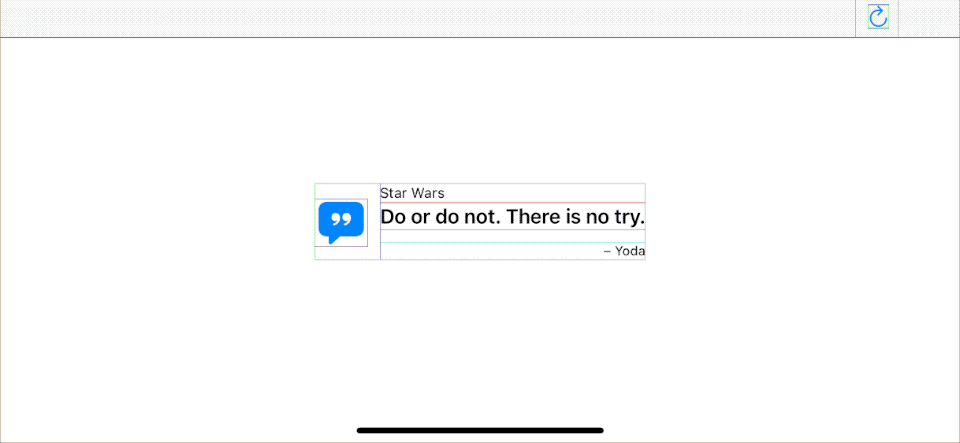

  • Set a view hidden with isHidden. Custom spacing is bind to a specific view, so hiding that view will also hide the spacing. You can notice the 10 points spacing is hidden and show with the quote label.

Hide a view will also hide a spacing bind with it
Hide a view will also hide a spacing bind with it
If you want to preserve 10 points spacing between the top section and author name, you need to use nested stack view.
If you want to preserve a space, please consider using nested stack view
If you want to preserve a space, please consider using nested stack view
  • Remove arranged subview. When you remove the subview from the stack view, the spacing goes with it. The following example shows how the spacing is gone after re-addling it back after remove from the stack view.
Remove the subview will also remove the spacing
Remove the subview will also remove the spacing


setCustomSpacing(_:after:) is a nice method for UIStackView that should help you layout your UI for the most trivial case. Using setCustomSpacing(_:after:) means you can reduce an instance of the stack view that removes a chunk of boilerplate code from your codebase.

But this doesn't mean all years of using multiple stack views go in vain. As you can see from Caveat section, there is some limitation which can't achieve by using just setCustomSpacing(_:after:) and nested stack view will always there for all your specific needs.
