A first look at matchedGeometryEffect

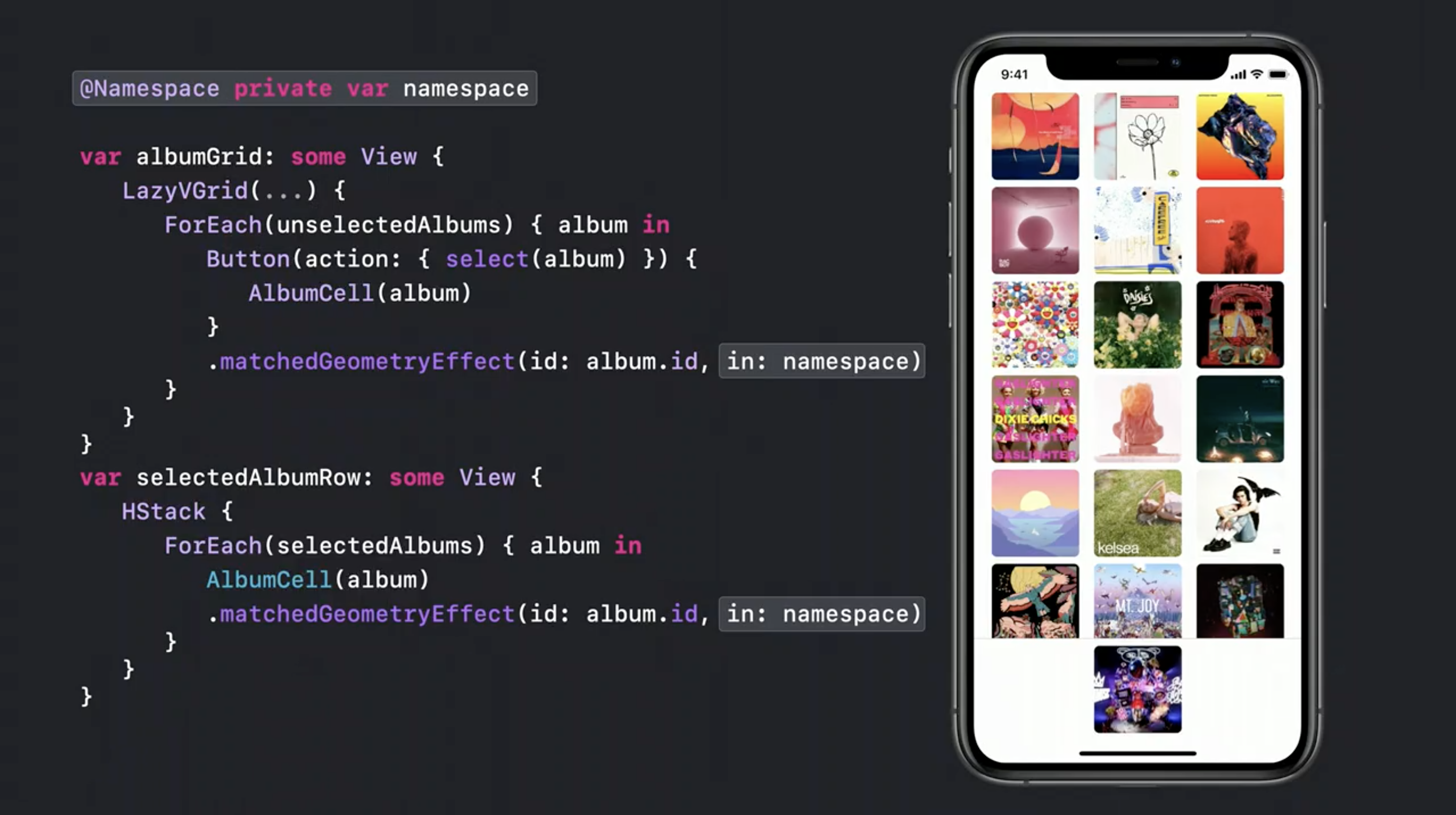

After watching What's new in SwiftUI, one feature the caught my attention is matchedGeometryEffect. It is a new SwiftUI effect which can interpolate position and size between two views. Let's see what we can do with it.

The basic

SwiftUI already interpolates view's property for us without the need for matchedGeometryEffect. In the following example, we can animate a rectangle size with a tap gesture.

struct ContentView: View {
    @State private var isExpanded = false

    var body: some View {
        RoundedRectangle(cornerRadius: 10)
            .foregroundColor(Color.pink)
            .frame(width: isExpanded ? 100: 60, height: isExpanded ? 100: 60)
            .onTapGesture {
            withAnimation {
                isExpanded.toggle()
            }
        }

    }
}

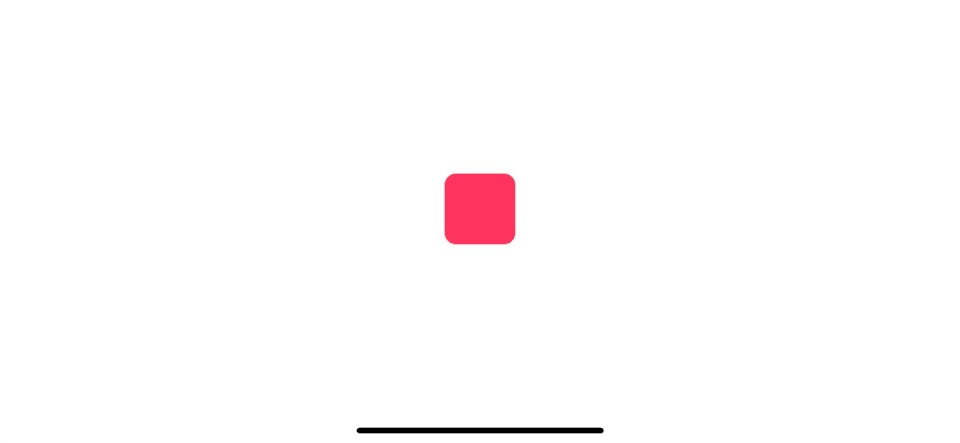

Here is the result:

You can easily support sarunw.com by checking out this sponsor.

AI Grammar: Correct grammar, spell check, check punctuation, and parphrase.

Try it for Free

What is matchedGeometryEffect for?

SwiftUI interpolates a value changes in view when an animation happens. In our previous example, we change frame value based on isExpanded state. This is great most of the time, but there would be a time when just value change is not enough or not possible to serve your layout. Let's say you want to change your layout from HStack to VStack.

struct ContentView: View {
    @State private var isExpanded = false

    var body: some View {
        Group() {
            if isExpanded {
                VStack {
                    RoundedRectangle(cornerRadius: 10)
                        .foregroundColor(Color.pink)
                        .frame(width: 60, height: 60)
                    Text("Hello SwiftUI!").fontWeight(.semibold)
                }
            } else {
                HStack {
                    Text("Hello SwiftUI!").fontWeight(.semibold)
                    RoundedRectangle(cornerRadius: 10)
                        .foregroundColor(Color.pink)
                        .frame(width: 60, height: 60)
                }
            }
        }.onTapGesture {
            withAnimation {
                isExpanded.toggle()
            }
        }
    }
}

Because what SwiftUI sees here is just showing and hiding of different views. The best SwiftUI can do is fade in and out between two views.

This kind of inter-view animation is where matchedGeometryEffect comes into play. matchedGeometryEffect can animate position and size between two views. What we need to do is link two views together. Here is how we do it.

struct ContentView: View {
    @State private var isExpanded = false
    @Namespace private var namespace // <1>

    var body: some View {
        Group() {
            if isExpanded {
                VStack {
                    RoundedRectangle(cornerRadius: 10)
                        .foregroundColor(Color.pink)
                        .frame(width: 60, height: 60)
                        .matchedGeometryEffect(id: "rect", in: namespace) // <2>
                    Text("Hello SwiftUI!").fontWeight(.semibold)
                        .matchedGeometryEffect(id: "text", in: namespace) // <3>
                }
            } else {
                HStack {
                    Text("Hello SwiftUI!").fontWeight(.semibold)
                        .matchedGeometryEffect(id: "text", in: namespace) // <4>
                    RoundedRectangle(cornerRadius: 10)
                        .foregroundColor(Color.pink)
                        .frame(width: 60, height: 60)
                        .matchedGeometryEffect(id: "rect", in: namespace) // <5>
                }
            }
        }.onTapGesture {
            withAnimation {
                isExpanded.toggle()
            }
        }
    }
}

<1> First, we need to define a namespace, a new property wrapper.
<2>, <5> We link two rectangle views together by specified the same id to .matchedGeometryEffect(id: "rect", in: namespace).
<3>, <4> We link two texts together by specified the same id to .matchedGeometryEffect(id: "text", in: namespace).

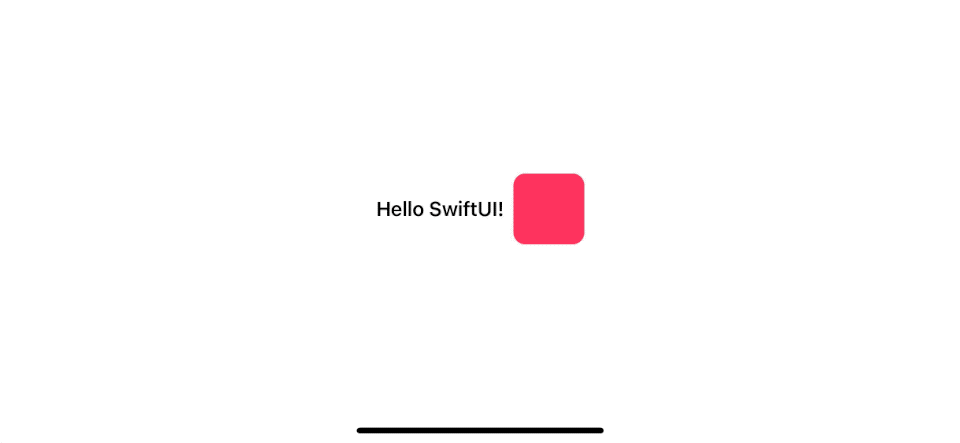

With these extra lines of code, our animation can interpolate nicely. It no longer treats our animation as a show and hides of views anymore, but a change of position and size of the same view.

Caveats

Since it is still in beta, I'm not sure whether this is a limitation or a bug. I will update once we have a final release. If it is my misunderstanding on the API, please let me know on Twitter (DM is open).

Size is not interpolating nicely (Updated with a solution)

Not like basic size change animation, .matchedGeometryEffect can't animate size change properly.

Instead of interpolating size from source to destination, it just uses fades in and out (I also change color to make it more visible).

Updated

To make a size interpolate correctly, we need to put matchedGeometryEffect before .frame. The order really makes a difference here.

var body: some View {
    Group() {
        if isExpanded {
            VStack {
                RoundedRectangle(cornerRadius: 10)
                    .matchedGeometryEffect(id: 1, in: namespace, properties: .frame)
                    .foregroundColor(Color.pink)
                    .frame(width: 100, height: 100)
                Text("Hello SwiftUI!").fontWeight(.semibold)
                    .matchedGeometryEffect(id: "text", in: namespace)
            }
        } else {
            HStack {
                Text("Hello SwiftUI!").fontWeight(.semibold)
                    .matchedGeometryEffect(id: "text", in: namespace)
                RoundedRectangle(cornerRadius: 10)
                    .matchedGeometryEffect(id: 1, in: namespace, properties: .frame)
                    .foregroundColor(Color.blue)
                    .frame(width: 60, height: 60)
            }
        }
    }.onTapGesture {
        withAnimation {
            isExpanded.toggle()
        }
    }

}

Work only on the same namespace (Updated with a solution)

Since @Namespace is a required parameter for matchedGeometryEffect and I can't find a way to pass this around, that's mean everything must happen on the same struct. So, we can't extract any views to their own struct.

We can't extract our animated views to VerticalView and HorizontalView because we can't pass @Namespace into those views.

struct ContentViewNameSpace: View {
    @State private var isExpanded = false
    @Namespace private var namespace

    var body: some View {
        Group() {
            if isExpanded {
                VerticalView()
            } else {
                HorizontalView()
            }
        }.onTapGesture {
            withAnimation {
                isExpanded.toggle()
            }
        }
    }
}

struct VerticalView: View {
    var body: some View {
        VStack {
            RoundedRectangle(cornerRadius: 10)
                .foregroundColor(Color.pink)
                .frame(width: 60, height: 60)
            Text("Hello SwiftUI!").fontWeight(.semibold)
        }
    }
}

struct HorizontalView: View {
    var body: some View {
        HStack {
            Text("Hello SwiftUI!").fontWeight(.semibold)
            RoundedRectangle(cornerRadius: 10)
                .foregroundColor(Color.pink)
                .frame(width: 60, height: 60)
        }
    }
}

Declare a property wrapper at the top-level also not supported. So, something like this won't work.

@Namespace private var namespace

struct ContentViewNameSpace: View {
    @State private var isExpanded = false

    ...
}

struct VerticalView: View {
    ...
}

struct HorizontalView: View {
    ...
}

Updated

Turn out we have a way to pass a namespace around. By declaring a variable of type Namespace.ID, you can share a namespace across different view and file.

struct ContentViewNameSpace: View {
    @State private var isExpanded = false
    @Namespace private var namespace


    var body: some View {
        Group() {
        if isExpanded {
            VerticalView(namespace: namespace)
        } else {
            HorizontalView(namespace: namespace)
        }
        }.onTapGesture {
        withAnimation {
            isExpanded.toggle()
        }
        }
    }
}

struct VerticalView: View {
    var namespace: Namespace.ID

    var body: some View {
        VStack {
        RoundedRectangle(cornerRadius: 10)
            .foregroundColor(Color.pink)
            .frame(width: 60, height: 60)
            .matchedGeometryEffect(id: "rect", in: namespace, properties: .frame)
        Text("Hello SwiftUI!").fontWeight(.semibold)
            .matchedGeometryEffect(id: "text", in: namespace)
        }
    }
}

struct HorizontalView: View {
    var namespace: Namespace.ID

    var body: some View {
        HStack {
        Text("Hello SwiftUI!").fontWeight(.semibold)
            .matchedGeometryEffect(id: "text", in: namespace)
        RoundedRectangle(cornerRadius: 10)
            .foregroundColor(Color.pink)
            .frame(width: 60, height: 60)
            .matchedGeometryEffect(id: "rect", in: namespace, properties: .frame)
        }
    }
}

Not work with modal

I expected this to work, but no luck.

struct ContentView: View {
    @Namespace private var namespace
    @State private var isExpanded = false

    var body: some View {

        HStack {
            Text("Hello SwiftUI!").fontWeight(.semibold)
                .matchedGeometryEffect(id: "text", in: namespace)
            RoundedRectangle(cornerRadius: 10)
                .foregroundColor(Color.blue)
                .frame(width: 60, height: 60)
                .matchedGeometryEffect(id: "rect", in: namespace, properties: .frame)
        }.onTapGesture {
            withAnimation {
              isExpanded.toggle()
            }
        }.sheet(isPresented: $isExpanded) {
            VStack {
                RoundedRectangle(cornerRadius: 10)
                    .foregroundColor(Color.pink)
                    .frame(width: 100, height: 100)
                    .matchedGeometryEffect(id: "rect", in: namespace, properties: .frame)
                Text("Hello SwiftUI!").fontWeight(.semibold)
                    .matchedGeometryEffect(id: "text", in: namespace)
            }
        }

    }
}

Not work with a navigation view

This doesn't work, and the destination view gets pushed with the default animation.

struct ContentView: View {
    @Namespace private var namespace
    @State private var isExpanded = false

    var body: some View {
        NavigationView {
            List {
                NavigationLink(destination: VStack {
                    RoundedRectangle(cornerRadius: 10)
                        .foregroundColor(Color.pink)
                        .frame(width: 100, height: 100)
                        .matchedGeometryEffect(id: "rect", in: namespace, properties: .frame)
                    Text("Hello SwiftUI!").fontWeight(.semibold)
                        .matchedGeometryEffect(id: "text", in: namespace)
                }) {
                    HStack {
                        Text("Hello SwiftUI!").fontWeight(.semibold)
                            .matchedGeometryEffect(id: "text", in: namespace)
                        RoundedRectangle(cornerRadius: 10)
                            .foregroundColor(Color.blue)
                            .frame(width: 60, height: 60)
                            .matchedGeometryEffect(id: "rect", in: namespace, properties: .frame)
                    }
                }

            }
        }

    }
}

Conclusion

My first thought is this matchedGeometryEffect is going to help me do all hero transition effects for modal and navigation view, but it turned out it is not that powerful (at least in this beta version). But this is still in beta, so I hope the animation is getting better when it release (at least for size transition). If they can do this right, a transition between modal and navigation shouldn't be that far.
