Get concentric corner radii from GeometryReader in iOS 27

ConcentricRectangle draws a shape whose corners match its container. But sometimes you need the numbers, not the shape, for example to build your own shape or to pass radii somewhere else.

In iOS 27, GeometryProxy gives you those numbers with a new property, concentricCornerRadii.

How to use it

Read it inside a GeometryReader. It returns an optional RectangleCornerRadii, which you can pass straight to UnevenRoundedRectangle:

GeometryReader { proxy in
    let radii = proxy.concentricCornerRadii ?? RectangleCornerRadii()

    UnevenRoundedRectangle(cornerRadii: radii)
        .fill(.pink)
}
.frame(width: 220, height: 160)

Here is a card built this way, dragged around an iPhone 18 Pro screen. The numbers are the four radii it gets back.

You can easily support sarunw.com by checking out this sponsor.

Translate your app In 1 click: Simplifies app localization and helps you reach more users.

Try it for Free

How the radii are calculated

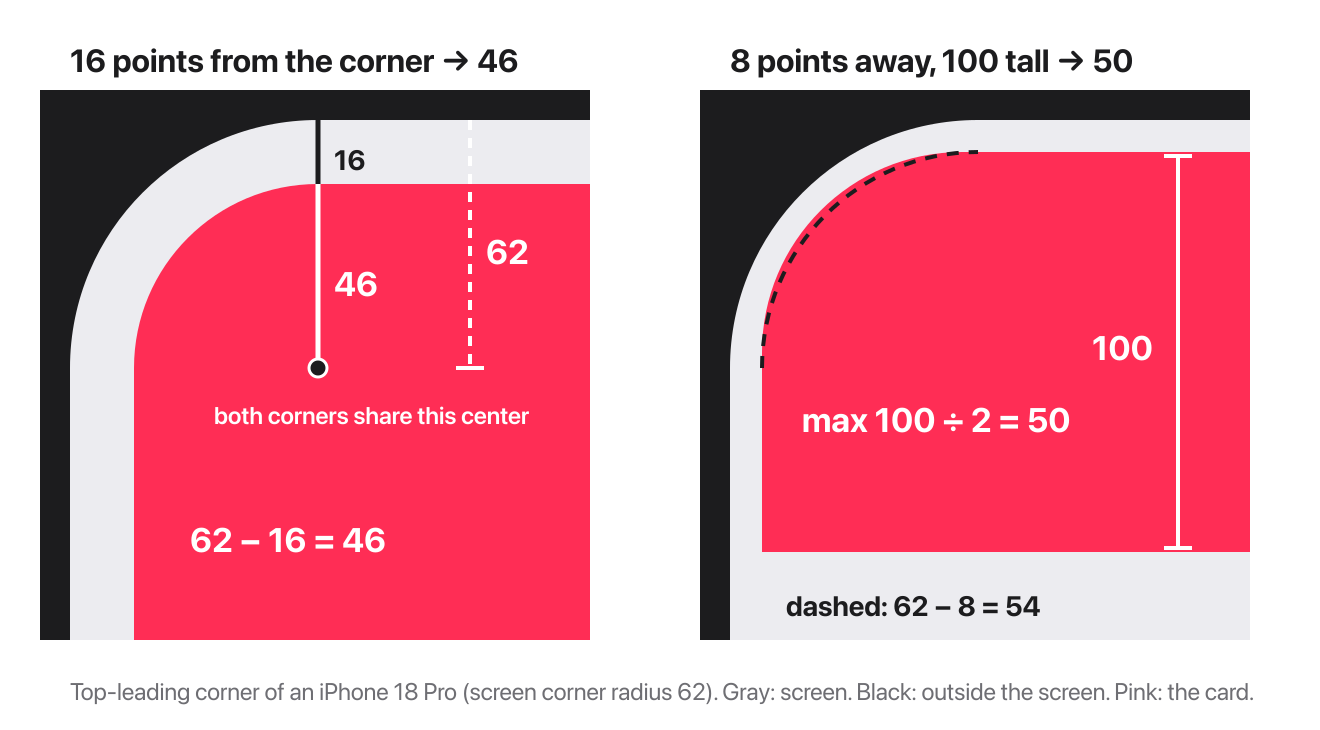

The card's corner curves around the same center as the screen's corner. On iPhone 18 Pro, the screen corner has a radius of about 62 points.

So the card's radius is the screen's radius minus the gap between them. A card 16 points from the corner gets 62 − 16 = 46.

There is one limit. A corner can't be rounder than half the card's shorter side. A card 100 points tall can't have a radius above 50, so a card 8 points from the corner gets 50 instead of 62 − 8 = 54.

Corners that aren't near a screen corner get 0, which is why a card in the middle of the screen has four square corners.

The limit can push a corner off the screen

When the limit applies, the card's corner is tighter than the screen's curve, so it doesn't follow the screen anymore. Close to the corner, its tip can end up outside the screen.

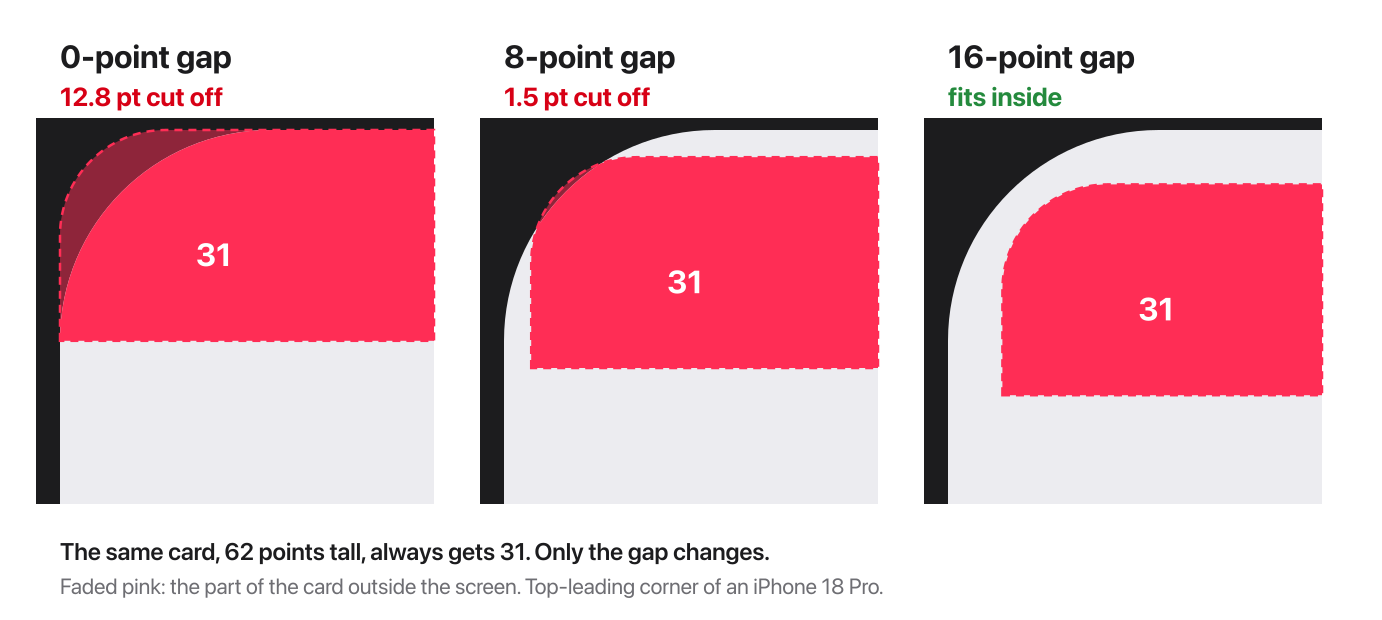

Here is a card 62 points tall at three gaps. It gets 31, half its height, at all three gaps, because 31 is smaller than 62 minus the gap each time. What changes is whether that 31-point corner fits inside the screen:

• Touching the corner: the tip of the corner is about 13 points past the screen's curve, so the display cuts it off.
• 8 points away: still about 1.5 points past the curve. Barely, but it's cut off.
• 16 points away: the corner fits inside the screen.

So if your view is short and sits close to a screen corner, check that its corner isn't cut off.

Follow your own container

By default, the radii follow the corners of the screen. To follow a shape of your own, declare it with containerShape(_:), the same way you would for ConcentricRectangle:

VStack {
    // views that read concentricCornerRadii
}
.background(
    RoundedRectangle(cornerRadius: 40)
        .fill(.gray.opacity(0.1))
)
.containerShape(RoundedRectangle(cornerRadius: 40))

With a 40-point container, a card touching the container's corner gets 40, and a card 10 points away gets 30.

Get radii for any rectangle

concentricCornerRadii gives you the radii for the view the GeometryReader wraps. If you want the radii for another rectangle, pass its frame to concentricCornerRadii(in:).

The frame is in the proxy's own coordinates, and the same rules apply. This lets one GeometryReader work out the corners for several shapes, without wrapping each one in its own GeometryReader:

GeometryReader { proxy in
    let frame = CGRect(x: 16, y: 16, width: 140, height: 100)
    let radii = proxy.concentricCornerRadii(in: frame) ?? RectangleCornerRadii()

    UnevenRoundedRectangle(cornerRadii: radii)
        .fill(.pink)
        .frame(width: frame.width, height: frame.height)
        .position(x: frame.midX, y: frame.midY)
}
.ignoresSafeArea()

With the GeometryReader filling the screen, this rectangle is 16 points from the top-leading corner, so its top-leading radius is 46, the same as a card placed there.

You can easily support sarunw.com by checking out this sponsor.

Translate your app In 1 click: Simplifies app localization and helps you reach more users.

Try it for Free

Things to know

• concentricCornerRadii is optional. Fall back to zero radii, as in the example above, so your shape stays square if it returns nil.
• It's iOS 27 only. On iOS 26, use ConcentricRectangle instead.
